5.2.2.1 Long-Term Temperature Changes

Figure 5.1 shows two time series of ocean heat content for the 0 to 700 m layer of the World Ocean, updated from Ishi et al. ( 2006 and Levitus et al. 2005a [JoC, SRC] ) for 1955 to 2005, and a time series for 0 to 750 m for 1993 to 2005 updated from Willis et al. 2004 [JoC, SRC] ). Approximately 7.9 million temperature profiles were used in constructing the two longer time series. The three heat content analyses cover different periods but where they overlap in time there is good agreement. The time series shows an overall trend of increasing heat content in the World Ocean with interannual and inter-decadal variations superimposed on this trend. The root mean square difference between the three data sets is 1.5 × 10²² J. These year-to-year differences, which are due to differences in quality control and data used, are small and now approaching the accuracies required to close the Earth’s radiation budget (e.g., Carton et al., 2005 [JoC] ). On longer time scales, the two longest time series (using independent criteria for selection, quality control, interpolation and analysis of similar data sets) show good agreement about long-term trends and also on decadal time scales.

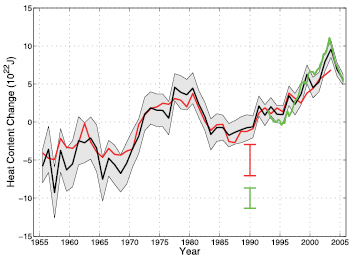

Figure 5.1. Time series of global annual ocean heat content (10²² J) for the 0 to 700 m layer. The black curve is updated from Levitus et al. 2005a [JoC, SRC] ), with the shading representing the 90% confidence interval. The red and green curves are updates of the analyses by Ishii et al. 2006 [MoS, ARC] and Willis et al. 2004 [JoC, SRC] , over 0 to 750 m) respectively, with the error bars denoting the 90% confidence interval. The black and red curves denote the deviation from the 1961 to 1990 average and the shorter green curve denotes the deviation from the average of the black curve for the period 1993 to 2003 .

For the period 1993 to 2003, the Levitus et al. 2005a [JoC, SRC] ) analysis has a linear global ocean trend of 0.42 ± 0.18 Wm^–2 ,Willis et al. 2004 [JoC, SRC] ) has a trend of 0.66 ± 0.18 Wm^–2 and Ishii et al. 2006 [MoS, ARC] ) a trend of 0.33 ± 0.18 Wm^–2.Overall, we assess the trend for this period as 0.5 ± 0.18 Wm^–2.For the 0 to 700 m layer and the period 1955 to 2003 the heat content change is 10.9 ± 3.1 × 10²² J or 0.14 ± 0.04 Wm^–2 (data from Levitus et al., 2005a [JoC, SRC] ). All of these estimates are per unit area of Earth surface. Despite the fact that there are differences between these three ocean heat content estimates due to the data used, quality control applied, instrumental biases, temporal and spatial averaging and analysis methods (Appendix 5.A.1), they are consistent with each other giving a high degree of confidence for their use in climate change studies. The global increase in ocean heat content during the period 1993 to 2003 in two ocean models constrained by assimilating altimetric sea level and other observations ( Carton et al., 2005 [JoC] ; Köhl et al., 2006 [SRC] ) is considerably larger than these observational estimates. We assess the heat content change from both of the long time series (0 to 700 m layer and the 1961 to 2003 period) to be 8.11 ± 0.74 × 10²² J, corresponding to an average warming of 0.1°C or 0.14 ± 0.04 Wm^–2,and conclude that the available heat content estimates from 1961 to 2003 show a significant increasing trend in ocean heat content.

The data used in estimating the Levitus et al. 2005a [JoC, SRC] ) ocean temperature fields (for the above heat content estimates) do not include sea surface temperature (SST) observations, which are discussed in Chapter3 .However, comparison of the global, annual mean time series of near-surface temperature (approximately 0 to 5 m depth) from this analysis and the corresponding SST series based on a subset of the International Comprehensive Ocean-Atmosphere Data Set (ICOADS) database (approximately 134 million SST observations; Smith and Reynolds, 2003 [JoC] and additional data) shows a high correlation (r = 0.96) for the period 1955 to 2005 . The consistency between these two data sets gives confidence in the ocean temperature data set used for estimating depth-integrated heat content, and supports the trends in SST reported in Chapter3 .

There is a contribution to the global heat content integral from depths greater than 700 m as documented by Levitus et al. 2000 [JoC, SRC] ; 2005a ). However, due to the lack of data with increasing depth the data must be composited using five-year running pentads in order to have enough data for a meaningful analysis in the deep ocean. Even then, there are not enough deep ocean data to extend the time series for the upper 3,000 m past the 1994 – 1998 pentad. There is a close correlation between the 0 to 700 and 0 to 3,000 m time series of Levitus et al. 2005a [JoC, SRC] ). A comparison of the linear trends from these two series indicates that about 69% of the increase in ocean heat content during 1955 to 1998 (the period when estimates from both time series are available) occurred in the upper 700 m of the World Ocean. Based on the linear trend, for the 0 to 3,000 m layer for the period 1961 to 2003 there has been an increase of ocean heat content of approximately 14.2 ± 2.4 × 10²² J, corresponding to a global ocean volume mean temperature increase of 0.037°C during this period. This increase in ocean heat content corresponds to an average heating rate of 0.21 ± 0.04 Wm^–2 for the Earth’s surface.

The geographical distribution of the linear trend of 0 to 700 m heat content for 1955 to 2003 for the World Ocean is shown in Figure 5.2 .These trends are non-uniform in space, with some regions showing cooling and others warming. Most of the Atlantic Ocean exhibits warming with a major exception being the subarctic gyre. The Atlantic Ocean accounts for approximately half of the global linear trend of ocean heat content ( Levitus et al., 2005a [JoC, SRC] ). Much of the Indian Ocean has warmed since 1955 with a major exception being the 5°S to 20°S latitude belt. The Southern Ocean (south of 35°S) in the Atlantic, Indian and Pacific sectors has generally warmed. The Pacific Ocean is characterised by warming with major exceptions along 40°N and the western tropical Pacific.

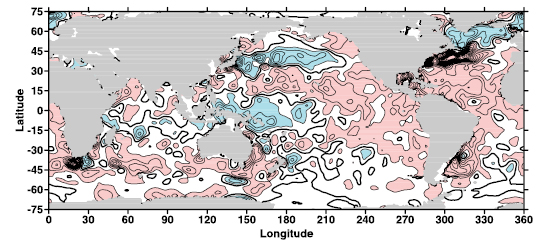

Figure 5.2. Linear trends ( 1955 – 2003 ) of change in ocean heat content per unit surface area (Wm^–2)for the 0 to 700 m layer, based on the work of Levitus et al. 2005a [JoC, SRC] ). The linear trend is computed at each grid point using a least squares fit to the time series at each grid point. The contour interval is 0.25 Wm^–2.Red shading indicates values equal to or greater than 0.25 Wm^–2 and blue shading indicates values equal to or less than –0.25 Wm^–2.

Figure 5.3 shows the linear trends ( 1955 to 2003 ) of zonally averaged temperature anomalies (0 to 1,500 m) for the World Ocean and individual basins based on yearly anomaly fields ( Levitus et al., 2005a [JoC, SRC] ). The strongest trends in these anomalies are concentrated in the upper ocean. Warming occurs at most latitudes in all three of the ocean basins. The regions that exhibit cooling are mainly in the shallow equatorial areas and in some high-latitude regions. In the Indian Ocean, cooling occurs at subsurface depths centred on 12°S at 150 m depth and in the Pacific centred on the equator and 150 m depth. Cooling also occured in the 32°N to 48°N region of the Pacific Ocean and the 49°N to 60°N region of the Atlantic Ocean. Regional temperature changes are discussed further in Section 5.3 .

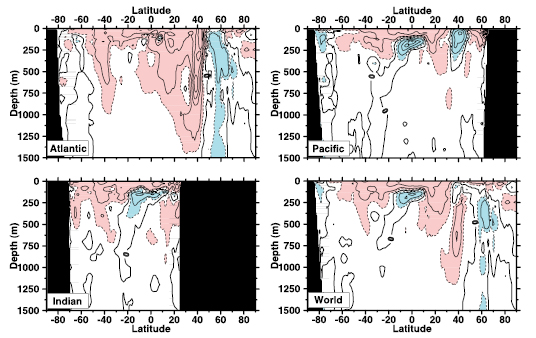

Figure 5.3. Linear trend ( 1955 – 2003 ) of zonally averaged temperature in the upper 1,500 m of the water column of the Atlantic, Pacific, Indian and World Oceans. The contour interval is 0.05°C per decade, and the dark solid line is the zero contour. Red shading indicates values equal to or greater than 0.025°C per decade and blue shading indicates values equal to or less than –0.025°C per decade. Based on the work of Levitus et al. 2005a [JoC, SRC] ).

5.2.2.2 Variability of Heat Content

Amajor feature of Figure 5.1 is the relatively large increase in global ocean heat content during 1969 to 1980 and a sharp decrease during 1980 to 1983 . The 0 to 700 m layer cooled at a rate of 1.2 Wm^–2 during this period. Most of this cooling occurred in the Pacific Ocean and may have been associated with the reversal in polarity of the PDO ( Stephens et al., 2001 [JoC, SRC] ; Levitus et al., 2005c [JoC, SRC] , see also Section 3.6.3 ). Examination of the geographical distribution of the differences in 0 to 700 m heat content between the 1977 – 1981 and 1965 – 1969 pentads and the 1986 – 1990 and 1977 – 1981 pentads shows that the pattern of heat content change has spatial scales of entire ocean basins and is also found in similar analyses by Ishii et al. 2006 [MoS, ARC] ). The Pacific Ocean dominates the decadal variations of global heat content during these two periods. The origin of this variability is not well understood.

Based on model experiments, it has been suggested that errors resulting from the highly inhomogeneous distribution of ocean observations in space and time (see Appendix 5.A.1) could lead to spurious variability in the analysis (e.g., Gregory et al., 2004 [JoC, MoS, SRC] , AchutaRao et al., 2006 [JoC, MoS, ARC] ). As discussed in the appendix, even in periods with overall good coverage in the observing system, large regions in Southern Hemisphere (SH) are not well sampled, and their contribution to global heat content variability is less certain. However, the large-scale nature of heat content variability, the similarity of the Levitus et al. 2005a [JoC, SRC] ) and the Ishii et al. 2006 [MoS, ARC] ) analyses and new results showing a decrease in the global heat content in a period with much better data coverage ( Lyman et al., 2006 [JoC, SRC] ), gives confidence that there is substantial inter-decadal variability in global ocean heat content.

5.2.2.3 Implications for Earth’s Heat Balance

To place the changes of ocean heat content in perspective, Figure 5.4 provides updated estimates of the change in heat content of various components of the Earth’s climate system for the period 1961 to 2003 ( Levitus et al., 2005a [JoC, SRC] ). This includes changes in heat content of the lithosphere ( Beltrami et al., 2002 [JoC, ARC] ), the atmosphere (e.g., Trenberth et al., 2001 [Ambiguous] ) and the total heat of fusion due to melting of i) glaciers, ice caps and the Antarctic and Greenland Ice Sheets (see Chapter4 )and ii) arctic sea ice ( Hilmer and Lemke, 2000 [JoC, ARC] ). The increase in ocean heat content is much larger than any other store of energy in the Earth’s heat balance over the two periods 1961 to 2003 and 1993 to 2003, and accounts for more than 90% of the possible increase in heat content of the Earth system during these periods. Ocean heat content variability is thus a critical variable for detecting the effects of the observed increase in greenhouse gases in the Earth’s atmosphere and for resolving the Earth’s overall energy balance. It is noteworthy that whereas ice melt from glaciers, ice caps and ice sheets is very important in the sea level budget (contributing about 40%), the energy associated with ice melt contributes only about 1% to the Earth’s energy budget.

Figure 5.4. Energy content changes in different components of the Earth system for two periods ( 1961 – 2003 and 1993 – 2003 ). Blue bars are for 1961 to 2003, burgundy bars for 1993 to 2003 . The ocean heat content change is from this section and Levitus et al. 2005c [JoC, SRC] ); glaciers, ice caps and Greenland and Antarctic Ice Sheets from Chapter4 ;continental heat content from Beltrami et al. 2002 [JoC, ARC] ); atmospheric energy content based on Trenberth et al. 2001 [Ambiguous] ); and arctic sea ice release from Hilmer and Lemke 2000 [JoC, ARC] ). Positive energy content change means an increase in stored energy (i.e., heat content in oceans, latent heat from reduced ice or sea ice volumes, heat content in the continents excluding latent heat from permafrost changes, and latent and sensible heat and potential and kinetic energy in the atmosphere). All error estimates are 90% confidence intervals. No estimate of confidence is available for the continental heat gain. Some of the results have been scaled from published results for the two respective periods. Ocean heat content change for the period 1961 to 2003 is for the 0 to 3,000 m layer. The period 1993 to 2003 is for the 0 to 700 m (or 750 m) layer and is computed as an average of the trends from Ishii et al. 2006 [MoS, ARC] Levitus et al. 2005a [JoC, SRC] and Willis et al. 2004 [JoC, SRC] ).

5.3.2.1 North Atlantic Subpolar Gyre, Labrador Sea and Nordic Seas

In the North Atlantic subpolar gyre, Labrador Sea and Nordic Seas, large salinity changes have been observed that have been associated with changed inputs of fresh water (ice melt, ocean circulation and river runoff) and with the NAO. Advection of these surface and deep salinity anomalies has been traced around the whole subpolar gyre including the Labrador and Nordic Seas. These anomalies are often called ‘Great Salinity Anomalies’ (GSAs; e.g., ( Dickson et al., 1988; ) Belkin, 2004 [JoC] ). During a positive phase of the NAO, the subpolar gyre strengthens and expands towards the east, resulting in lower surface salinity in the central subpolar region ( Levitus, 1989 [JoC, SRC] ; Reverdin et al., 1997 [JoC, ARC] ; Bersch, 2002 [JoC] ). Three GSAs have been thoroughly documented: one from 1968 to 1978, one in the 1980 s and one in the 1990 s. Observational and modelling studies show that the relative influence of local events and advection differ between different GSA events and regions ( (Houghton and Visbeck, 2002; ) Josey and Marsh, 2005 [JoC, SRC] ).

These surface salinity anomalies have affected the Labrador Sea and the production of Labrador Sea Water (LSW), a major component of the North Atlantic Deep Water (NADW) and contributor to the lower limb of the MOC. The LSW appears to alternate between dense, cold types and less dense, warm types ( Yashayaev et al., 2003 [SRC] ;( Kieke et al., 2006 ) ) possibly with more production of dense LSW during years of positive-phase NAO ( (Dickson et al., 1996 ) ). Since 1965 to 1970, the LSW has had a significant freshening trend with a superimposed variability consisting of three saltier periods, coinciding with warmer water, and two freshening and cooling periods in the 1970 s and 1990 s( Figure 5.7 ). During the period 1988 to 1994, an exceptionally large volume of cold, fresh and dense LSW was produced ( Sy et al., 1997 [JoC] ;( Lazier et al., 2002 ) ), unprecedented in the sparse time series that extends back to the 1930 s ( Talley and McCartney, 1982 [SRC] ). The Labrador Sea has now returned to a warmer, more saline state; most of the excess volume of the dense LSW has disappeared, the mid-layers became warmer and saltier, and the production of LSW shifted to the warmer type (e.g., ( Lazier et al., 2002; ) Yashayaev et al., 2003 [SRC] ;( Stramma et al., 2004 ) ). This warming and increased salinity and reduction in LSW was associated with the weakening of the North Atlantic subpolar gyre, seen also in satellite altimetry data ( Häkkinen and Rhines, 2004 [JoC] ).

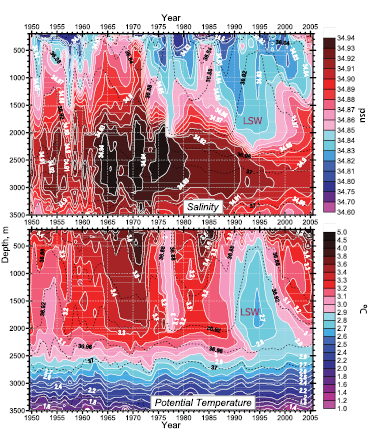

Figure 5.7. The longest available time series of salinity (psu; upper panel) and potential temperature (°C, lower panel) in the central Labrador Sea from 1949 to 2005 (updated from Yashayaev et al., 2003 [SRC] ). The dashed lines are contours of potential density (kgm^-3,difference from 1,000 kgm^-3)and are the same on both panels.

The eastern half of the subpolar North Atlantic also freshened through the 1980 s and into the 1990 s, but the upper ocean has been increasing in salinity or remaining steady since then, depending on location. About two-thirds of the freshening in this region has been attributed to an increase in precipitation associated with a climate pattern known as the East Atlantic Pattern ( Josey and Marsh, 2005 [JoC, SRC] ), with the NAO playing a secondary role. From 1965 to 1995, the subpolar freshening amounted to an equivalent freshwater layer of approximately 3 m spread evenly over its total area ( Belkin, 2004 [JoC] ; Curry and Mauritzen, 2005 [JoC, SRC] ).

Subsurface salinity in the Nordic Seas has also decreased markedly since the 1970 s ( Dickson et al., 2003 [JoC, SRC] ), directly affecting the salinity of the Nordic Sea overflow waters that contribute to NADW. This decrease in subsurface salinity was associated with lower salinity of the Atlantic waters entering the Nordic seas and related to the high NAO index and intensification of the subpolar gyre. Since 1994, the salinity of the inflow from the North Atlantic has been increasing, reaching the highest values since 1948, largely due to a weakening of the subpolar gyre circulation that allowed more warm water into the Nordic Seas, associated with a decreasing NAO index ( Hátún et al., 2005 [JoC] ).

The densest waters contributing to NADW and to the deep limb of the MOC arise as overflows from the upper 1,500 m of the Nordic Seas through the Denmark Strait and Faroe Channel. The marked freshening of the overflow water masses exiting the Arctic was associated with growing sea ice export from the Arctic and precipitation in the Nordic Seas ( Dickson et al., 2002 [JoC] , 2003 ). The transports of the overflow waters, of which the largest component is through Denmark Strait, have varied by about 30% ( Macrander et al., 2005 [JoC] ), but there has been no clear trend in this location. Overall, the overflows that contribute to NADW from the Nordic Seas have remained constant to within the known variability.

The overall pattern of change in the North Atlantic subpolar gyre is one of a trend towards fresher values over most of the water column from the mid- 1960 s until the mid- 1990 s. Since then, there has been a return to warmer and more saline waters( Figure 5.7 ), which coincides with the change in NAO and East Atlantic Pattern. However, this return to saltier waters has not been sustained for a long enough period to change the sign of the long-term trends( Figure 5.5 Atlantic).

5.3.2.2 Arctic Ocean

Climate change in the Arctic Ocean and Nordic Seas is closely linked to the North Atlantic subpolar gyre ( Østerhus et al., 2005 [JoC] ). Within the Arctic Ocean and Nordic Seas, surface temperature has increased since the mid- 1980 s and continues to increase ( Comiso, 2003 [JoC, ARC] ). In the Atlantic waters entering the Nordic Seas, a temperature increase in the late 1980 s and early 1990 s ( Quadfasel et al., 1991 [JoC, SRC] ; Carmack et al., 1995 [JoC] ) has been associated with the transition in the 1980 s towards more positive NAO states. Warm Atlantic waters have also been observed to enter the Arctic as pulses via Fram Strait and then along the slope to the Laptev Sea ( Polyakov et al., 2005 [JoC] ); the increased heat content and increased transport in the pulses both contribute to net warming of the arctic waters ( Schauer et al., 2004 [JoC] ). Multi-decadal variability in the temperature of the Atlantic Water core affecting the top 400 m in the Arctic Ocean has been documented ( Polyakov et al., 2004 [JoC] ). Within the Arctic, salinity increased in the upper layers of the Amundsen and Makarov Basins, while salinity of the upper layers in the Canada Basin decreased ( (Morison et al., 1998 ) ). Compared to the 1980 s, the area of upper waters of Pacific origin has decreased ( McLaughlin et al., 1996 [JoC] ; Steele and Boyd, 1998 [JoC] ).

During the 1990 s, changed winds caused eastward redirection of river runoff from the Laptev Sea (Lena River, etc.), reducing the low-salinity surface layer in the central Arctic Ocean ( Steele and Boyd, 1998 [JoC] ), thus allowing greater convection and heat transport into the surface arctic layer from the more saline subsurface Atlantic layer. Thereafter, however, the stratification in the central Arctic (Amundsen Basin) increased and a low-salinity mixed layer was again observed at the North Pole in 2001, possibly due to a circulation change that restored the river water input ( Björk et al., 2002 [JoC] ). Circulation variability that shifts the balance of fresh and saline surface waters in the Arctic, with associated changes in sea ice, might be associated with the NAM ( Proshutinsky and Johnson, 1997 [JoC, SRC] ; Rigor et al., 2002 [JoC, ARC] ), however, the long-term decline in arctic sea ice cover appears to be independent of the NAM ( Comiso, 2002 [JoC, ARC] ). While there is significant decadal variability in the Arctic Ocean, no systematic long-term trend in subsurface arctic waters has been identified.

5.3.2.3 Subtropical and Equatorial Atlantic

In the North Atlantic subtropical gyre, circulation, SST, the thickness of near-surface Subtropical Mode Water (STMW, Hanawa and Talley, 2001 [NPR, SRC] ) and thermocline ventilation are all highly correlated with the NAO, with some time lags. A more positive NAO state, with westerlies shifted northwards, results in a decreased Florida Current transport ( Baringer and Larsen, 2001 [JoC] ), a likely delayed northward shift of the Gulf Stream position ( Joyce et al., 2000 [JoC, SRC] ; Seager et al., 2001 [JoC] ; Molinari, 2004 [SRC] ), and decreased subtropical eddy variability ( Penduff et al., 2004 [MoS] ). In the STMW, low thickness and production and higher temperature result from a high NAO index (e.g., Talley, 1996 [SRC] ; e.g., Hazeleger and Drijfhout, 1998 [MoS] ; Marsh, 2000 [JoC, SRC] ). The volume of STMW is likely to lag changes in the NAO by two to three years, and low (high) volumes are associated with high (low) surface layer temperatures because of changes in both convective forcing and location of STMW formation. While quasi-cyclic variability in STMW renewal is apparent over the 1960 to 1980 period, the total volume of STMW has remained low through 2000 since a peak in 1983 to 1984, associated with a relatively persistent positive NAO phase during the late 1980 s and early 1990 s ( (Lazier et al., 2002; ) Kwon and Riser, 2004 [JoC] ).

In the subtropics at depths of 1,000 to 2,000 m, the temperature has increased since the late 1950 s at Bermuda, at 24°N, and at 52°W and 66°W in the Gulf Stream ( Bryden et al., 1996 [JoC] ; Joyce and Robbins, 1996 [JoC, SRC] ; Joyce et al., 1999 [SRC] ). These warming trends reflect reduced production of LSW ( Lazier, 1995 [NPR] ) and increased salinity and temperature of the waters from the Mediterranean ( Roether et al., 1996 [JoC] ; Potter and Lozier, 2004 [JoC] ). After the mid- 1990 s at greater depths (1,500–2,500 m), temperature and salinity decreased, reversing the previous warming trend, most likely due to delayed appearance of the new colder and fresher Labrador Sea Water produced in the mid- 1990 s.

Intermediate water (800–1,200 m) in the mid-latitude eastern North Atlantic is strongly influenced by the saline Mediterranean Water (MW; Section 5.3.2.3 ). This saline layer joins the southward-flowing NADW and becomes part of it in the tropical Atlantic. This layer has warmed and become more saline since at least 1957 ( Bryden et al., 1996 [JoC] ), continuing during the last decade ( 1994 – 2003 ) at a rate of more than 0.2°C per decade with a rate of 0.4°C per decade at some levels ( Vargas-Yáñez et al., 2004 [JoC] ). In the Bay of Biscay (44°N; González-Pola et al., 2005 [JoC] ) and at Gibraltar ( Millot et al., 2006 [SRC] ), similar warming was observed through the thermocline and into the core of the MW. From 1955 to 1993, the trend was about 0.1°C per decade in a zone west of Gibraltar ( Potter and Lozier, 2004 [JoC] ), and of almost the same magnitude even west of the mid-Atlantic Ridge ( Curry et al., 2003 [JoC, SRC] ).

Surface waters in the Southern Ocean, including the high-latitude South Atlantic, set the initial conditions for bottom water in the (SH). This extremely dense Antarctic Bottom Water (AABW), which is formed around the coast of Antarctica (see Section 5.3.5.2 ), spreads equatorward and enters the Brazil Basin through the narrow Vema Channel of the Rio Grande Rise at 31°S. Ongoing observations of the lowest bottom temperatures there have revealed a slow but consistent increase of the order 0.002°C yr^–1 in the abyssal layer over the last 30 years ( Hogg and Zenk, 1997 [JoC] ).

In the tropical Atlantic, the surface water changes are partly associated with the variability of the marine Inter-tropical Convergence Zone, which has strong seasonal variability ( Mitchell and Wallace, 1992 [JoC] ; Biasutti et al., 2003 [JoC] ; Stramma et al., 2003 [NPR, SRC] ). Tropical Atlantic variability on interannual to decadal time scales can be influenced by a South Atlantic dipole in SST ( Venegas et al., 1998 [JoC] ), associated with latent heat fluxes related to changes in the subtropical high ( Sterl and Hazeleger, 2003 [JoC] ). The South Equatorial Current provides a region for subduction of the water masses ( Hazeleger et al., 2003 [MoS] ) and may also maintain a propagation pathway for water mass anomalies towards the north ( Lazar et al., 2002 [JoC] ).

The North Atlantic Oscillation is an important driver of the oceanic water mass variations in the upper North Atlantic subtropical gyre. Its effects are also observed at depths greater than 1,500 m within the subtropical gyre consistent with the large-scale circulation and changes in source waters in the North Atlantic Ocean. While there are coherent changes in the long-term trends in temperature and salinity( Section 5.2 ), decadal variations are an important climate signal for this region.

5.3.2.4 Mediterranean Sea

Marked changes in thermohaline properties have been observed throughout the Mediterranean ( (Manca et al., 2002 ) ). In the western basin, the Western Mediterranean Deep Water (WMDW), formed in the Gulf of Lions, warmed during the last 50 years, interrupted by a short period of cooling in the early 1980 s, the latter reflected in cooling of the Levantine Intermediate Water between the late 1970 s and mid- 1980 s ( Brankart and Pinardi, 2001 [MoS] ). The WMDW warming is in agreement with recent atmospheric temperature changes over the Mediterranean ( Luterbacher et al., 2004 [JoC, ARC] ). The salt content of the WMDW has also been steadily increasing during the last 50 years, mainly attributed to decreasing precipitation over the region since the 1940 s ( Krahmann and Schott, 1998 [JoC, SRC] ; Mariotti et al., 2002 [JoC] ) and to anthropogenic reduction in the freshwater inflow ( Rohling and Bryden, 1992 [JoC] ). These changes in water properties and circulation are linked to the long-term variability of surface fluxes ( Krahmann and Schott, 1998 [JoC, SRC] ) with contributions from the NAO ( Vignudelli et al., 1999 [JoC] ) that produce consistent changes in surface heat fluxes and a net warming of the Mediterranean Sea ( Rixen et al., 2005 [JoC, SRC] ).

These changes in the temperature and salinity within the Mediterranean have affected the outflow of water into the North Atlantic at Gibraltar (see also Section 5.3.2.3 ). Part of this shift in Mediterranean outflow properties has been traced to the Eastern Mediterranean. During 1987 to 1991, the Eastern Mediterranean Deep Water became warmer and saltier due to the switch of its source water from the Adriatic to the Aegean ( Klein et al., 2000 [JoC] ;( Gertman et al., 2006 ) ), most likely related to changes in the heat and freshwater flux anomalies in the Aegean Sea ( Tsimplis and Rixen, 2002 [JoC, SRC] ; Josey, 2003 [JoC, MoS, SRC] ; Rupolo et al., 2003 [JoC] ). This 1987 to 1991 switch of source waters has continued and increased its impact, with density of the westward outflow in Sicily Strait now denser ( (Gasparini et al., 2005 ) ). While there are strong natural variations in the Mediterranean, overall there is a discernible trend of increased salinity and warmer temperature in key water masses over the last 50 years and this signal is observable in the North Atlantic.

5.3.3.1 Pacific Upper Ocean Changes

In the North Pacific, the zonally averaged temperature warming trend from 1955 to 2003 ( Figure 5.3 )is dominated by the PDO increase in the mid- 1970 s. The strong cooling between 50 and 200 m is due to relaxation and subsequent shallowing of the tropical thermocline, resulting from a decrease in the shallow tropical MOC and a relaxation of the equatorial thermocline ( McPhaden and Zhang, 2002 [JoC, SRC] ), although after 1998 this shallow overturning circulation returned to levels almost as high as in the 1970 s ( McPhaden and Zhang, 2004 [JoC, SRC] ).

Warming in the North Pacific subtropics, cooling around 40°N and slight warming farther north is the pattern associated with a positive PDO (strengthened Aleutian Low; Miller and Douglas, 2004 [JoC] ; see Figure 3.28 ). Within the North Pacific Ocean, a positive PDO state such as occurred after 1976 is characterised by a strengthened Kuroshio Extension. After 1976, the Kuroshio Extension and North Pacific Current transport increased by 8% and expanded southward ( (Parrish et al., 2000 ) ). The Kuroshio’s advection of temperature anomalies has been shown to be of similar importance to variations in ENSO and the strength of the Aleutian Low in maintaining the positive PDO ( Schneider and Cornuelle, 2005 [JoC, MoS] ). The Oyashio penetrated farther southward along the coast of Japan during the 1980 s than during the preceding two decades, consistent with a stronger Aleutian Low ( Sekine, 1988 [JoC] ; Hanawa, 1995 [SRC] ;( Sekine, 1999 ) ). A shoaling of the halocline in the centre of the western subarctic gyre and a concurrent southward shift of the Oyashio extension front during 1976 to 1998 vs. 1945 to 1975 has been detected ( Joyce and Dunworth-Baker, 2003 [JoC, SRC] ). Similarly, mixed layer depth decreased throughout the eastern subarctic gyre, with a distinct trend over 50 years ( (Freeland et al., 1997; ) Li et al., 2005 [JoC] ).

Temperature changes in upper-ocean water masses in response to the more positive phase of the PDO after 1976 are well documented. The thick water mass just south of the Kuroshio Extension in the subtropical gyre (Subtropical Mode Water) warmed by 0.8°C from the mid- 1970 s to the late 1980 s, associated with stronger Kuroshio advection, and the thick water mass along the subtropical-subpolar boundary near 40°N (North Pacific Central Mode Water) cooled by 1°C following the shift in the PDO after 1976 ( Yasuda et al., 2000 [SRC] ; Hanawa and Kamada, 2001 [JoC, SRC] ).

Trends towards increased heat content include a major signal in the subtropical South Pacific, within the thick mixed layers just north of the Antarctic Circumpolar Current ( Willis et al., 2004 [JoC, SRC] ; Section 5.3.5 ). The strength of the South Pacific subtropical gyre circulation increased more than 20% after 1993, peaking in 2003, and subsequently declined. This spin up is linked to an increase of Ekman pumping over the gyre due to an increase in the SAM index (Roemmich et al., 2007 [NotFound] ).

The marginal seas of the Pacific Ocean are also subject to climate variability and change. Like the Mediterranean in the North Atlantic, the Japan (or East) Sea is nearly completely isolated from the adjacent ocean basin, and forms all of its own waters beneath the shallow pycnocline. Because of this sea’s limited size, it responds quickly through its entire depth to surface forcing changes. The warming evident through the global ocean is clearly apparent in this isolated basin, which warmed by 0.1°C at 1,000 m and 0.05°C below 2,500 m since the 1960 s. Salinity at these depths also changed, by 0.06 psu per century for depths of 300 to 1,000 m and by –0.02 psu per century below 1,500 m ( Kwon et al., 2004 [Ambiguous] ). These changes have been attributed to reduced surface heat loss and increased surface salinity, which have changed the mode of ventilation ( Kim et al., 2004 [SRC] ). Deep water production in the Japan (East) Sea slowed for many decades, with a marked decrease in dissolved oxygen from the 1930 s to 2000 at a rate of about 0.8 µmol kg^–1 yr^–1( (Gamo et al., 1986; ) ( Minami et al., 1998 ) ). However, possibly because of weakened vertical stratification at mid-depths associated with the decades-long warming, deep-water production reappeared after the 2000 – 2001 severe winter (e.g., Kim et al., 2002 [JoC, SRC] ; Senjyu et al., 2002 [JoC] ; Talley et al., 2003b [JoC, SRC] ). Nevertheless, the overall trend has continued with lower deep-water production in subsequent years.

5.3.3.2 Intermediate and Deep Circulation and Water Property Changes

Since the 1970 s, the major mid-depth water mass in the North Pacific, North Pacific Intermediate Water (NPIW), has been freshening and has become less ventilated, as measured by oxygen content (see Section 5.4.3 ). The NPIW is formed in the subpolar North Pacific, with most influence from the Okhotsk Sea, and reflects changes in northern North Pacific surface conditions. The salinity of NPIW decreased by 0.1 and 0.02 psu in the subpolar and subtropical gyres, respectively ( Wong et al., 2001 [JoC, SRC] ; Joyce and Dunworth-Baker, 2003 [JoC, SRC] ). An oxygen decrease and nutrient increase in the NPIW south of Hokkaido from 1970 to 1999 was reported ( Ono et al., 2001 [JoC, SRC] ), along with a subpolar basin-wide oxygen decrease from the mid- 1980 s to the late 1990 s ( Watanabe et al., 2001 [JoC] ). Warming and freshening occurred in the Okhotsk Sea in the latter half of the 20th century ( Hill et al., 2003 [ARC] ). The Okhotsk Sea intermediate water thickness was reduced and its density decreased in the 1990 s ( Yasuda et al., 2001 [JoC, SRC] ).

In the southwest Pacific, in the deepest waters originating from the North Atlantic and Antarctica, cooling and freshening of 0.07°C and 0.01 psu from 1968 to 1991 was observed ( Johnson and Orsi, 1997 [JoC] ) and attributed to a change in the relative importance of Antarctic and North Atlantic source waters and weakening bottom transport. Bottom waters in the North Pacific are farther from the surface sources than any other of the world’s deep waters. They are also the most uniform, in terms of spatial temperature and salinity variations. A large-scale, significant warming of the bottom 1,000 m across the entire North Pacific of the order of 0.002°C occurred between 1985 and 1999, measurable because of the high accuracy of modern instruments ( Fukasawa et al., 2004 [JoC] ). The cause of this warming is uncertain, but could have resulted from warming of the deep waters in the South Pacific and Southern Ocean, where mid-depth changes since the 1950 s are as high as 0.17°C ( Gille, 2002 [JoC] ; see Figure 5.8 ), and/or from the declining bottom water transport into the deep North Pacific ( (Johnson et al., 1994 ) ).

Figure 5.8. Temperature trends (°C yr^–1)at 900 m depth using data collected from the 1930 s to 2000, including shipboard profile and Autonomous LAgrangian Current Explorer float data. The largest warming occurs in subantarctic regions, and a slight cooling occurs to the north. From Gille 2002 [JoC] ).

5.3.5.1 Upper-Ocean Property Changes

The upper ocean in the SH has warmed since the 1960 s, dominated by changes in the thick near-surface layers called Subantarctic Mode Water (SAMW), located just north of the Antarctic Circumpolar Current (ACC) that encircles Antarctica. The observed warming of SAMW is consistent with the subduction of warmer surface waters from south of the ACC ( Wong et al., 2001 [JoC, SRC] ; Aoki et al., 2003 [JoC] ). In the Upper Circumpolar Deep Water (UCDW) in the Indian and Pacific sectors of the Southern Ocean, temperature and salinity have been increasing (on density surfaces) and oxygen has been decreasing between the Subantarctic Front near 45°S and the Antarctic Divergence near 60°S ( Aoki et al., 2005a [JoC, SRC] ). These changes just below the mixed layer (~100 to 300 m) are consistent with the mixing of warmer and fresher surface waters with UCDW, suggesting an increase in stratification in the surface layer of this polar region.

Mid-depth waters of the Southern Ocean have also warmed in recent decades. As shown in Figure 5.8 ,temperatures increased near 900 m depth between the 1950 s and the 1980 s throughout most of the Southern Ocean ( Aoki et al., 2003 [JoC] ; Gille, 2004 [JoC, MoS] ). The largest changes are found near the Antarctic Circumpolar Current, where the warming at 900 m depth is similar in magnitude to the increase in regional surface air temperatures. Analysis of altimeter and Argo float profile data suggests that, over the last 10 years, the zonally averaged warming in the upper 400 m of the ocean near 40°S ( Willis et al. 2004 [JoC, SRC] ) is much larger than that seen in long-term trends (see Section 5.2 , Figure 5.3 World). The warming results from these analyses have been attributed to a southward shift and increased intensity of the SH westerlies, which would shift the ACC slightly southward and intensify the subtropical gyres (e.g., Cai, 2006 [NPR, JoC, ARC] ).

The major mid-depth water mass in the SH, Antarctic Intermediate Water (AAIW), has also been freshening since the 1960 s ( Wong et al., 1999 [JoC, SRC] ; Bindoff and McDougall, 2000 [SRC] ; see Figure 5.6 ). The Atlantic freshening of AAIW is also supported by direct observations of a freshening of southern surface waters ( Curry et al., 2003 [JoC, SRC] ).

5.3.5.2. Antarctic Regions and Antarctic Circumpolar Current

The ACC, the longest current system in the world, has a transport through Drake Passage of about 130 Sv, with significant interannual variability. Measurements over 25 years across Drake Passage show no evidence for a systematic trend in total volume transport between the 1970 s and the present ( Cunningham et al., 2003 [JoC, SRC] ), although continuous subsurface pressure measurements suggest that trends in seasonality of transport are highly correlated with similar trends in the SAM index ( Meredith and King, 2005 [JoC] ).

There is growing evidence for the changes in the AABW and intermediate depth waters around Antarctica. In the Weddell Sea, the deep and bottom water properties varied in the 1990 s ( (Robertson et al., 2002; ) ( Fahrbach et al., 2004 ) ). Changes in bottom water properties have also been observed downstream of these source regions ( Hogg, 2001 [NPR] ; Andrie et al., 2003 [JoC] ) and in the South Atlantic( Section 5.3.2.3 ). The upper ocean adjacent to the West Antarctic Peninsula warmed by more than 1°C and became more saline by 0.25 psu from 1951 to 1994 ( Meredith and King, 2005 [JoC] ). The warming is likely to have resulted from large regional atmospheric warming ( Vaughan et al., 2003 [JoC, ARC] ) and reduced winter sea ice observed in this region.

In the Ross Sea and near the Ross Ice Shelf, significant decreases in salinity of 0.003 psu yr^–1 (and density decreases) over the last four decades ( Jacobs et al., 2002 [JoC] ) have been observed. Downstream of the Ross Ice Shelf in the Australian-Antarctic Basin, AABW has also cooled and freshened ( Aoki et al., 2005b [JoC, SRC] ). These observed decreases are significantly greater than earlier reports of AABW variability ( Whitworth, 2002 [JoC] ) and suggest that changes in the antarctic shelf waters can be quite quickly communicated to deep waters. Jacobs et al. 2002 [JoC] ) concluded that the freshening appears to have resulted from a combination of factors including increased precipitation, reduced sea ice production and increased melting of the West Antarctic Ice Sheet.

5.3.6.1 Changes in Global Water Mass Properties

The regional analyses described in the previous sections have global organisation, as described partially in Section 5.3.1 ( Figure 5.6 ), and as reflected in the global trend analyses in Section 5.2 .The data sets used for the largest-scale descriptions over the last 30 to 50 years are reliable; different types of data and widely varying methods yield similar results, increasing confidence in the reality of the changes found in both the global and regional analyses.

The regional and global analyses of ocean warming generally show a pattern of increased ocean temperature in the regions of very thick surface mixed layer (mode water) formation. This is clearest in the North Atlantic and North Pacific and in all sectors of the Southern Ocean( Figure 5.3 ). There are also regions of decreased ocean temperature in both the global and regional analyses in parts of the subpolar and equatorial regions.

Both the global and regional analyses show long-term freshening in the subpolar waters in the North Atlantic and North Pacific and a salinity increase in the upper ocean (<100 m deep) at low to mid-latitudes. This is consistent with an increase in the atmospheric hydrological cycle over the oceans and could result in changes in ocean advection( Section 5.3.2 ). In the North Atlantic, the subpolar freshening occurred throughout the entire water column, from the 1960 s to the mid- 1990 s( Figure 5.5 and Figure 5.6 a). Increased salinity and temperature in the upper water column in the subpolar North Atlantic after 1994 are not apparent from the linear trend applied to the full time series in Figure 5.5 ,but are clear in all regional time series( Section 5.3.2 ). Freshening in the North Pacific subpolar gyre north of 45°N is apparent in both regional analyses( Section 5.3.3.2 )and global analyses( Figure 5.5 ). Freshening of intermediate depth waters (>300 m) from Southern Ocean sources( Section 5.3.5 )is apparent in both the global and regional analyses (e.g., Figure 5.5 World).

Many of the observed changes in the temperature and salinity fields have been linked to atmospheric forcing through correlations with atmospheric indices associated with the NAO, PDO and SAM. Indeed, most of the few time series of ocean measurements or repeat measurements of long sections (see Sections 5.3.2 and 5.3.4 )show evidence of decadal variability. Because of the long time scales of these natural climate patterns, it is difficult to discern if observed decadal oceanic variability is natural or a climate change signal; indeed, changes in these natural patterns themselves might be related to climate change. In the North Atlantic, freshening at high latitudes and increased evaporation at subtropical latitudes prior to the mid- 1990 s might have been associated with an increasing NAO index, and the reversal towards higher salinity at high latitudes thereafter with a decreasing NAO index after 1990 (see Figure 3.31 ). Likewise in the Pacific, freshening at high latitudes and increased evaporation in the subtropics, cooling in the central North Pacific, warming in the eastern and tropical Pacific and reduced ventilation in the Kuroshio region, Japan and Okhotsk Seas could be associated with the extended positive phase of the PDO. The few detection and attribution studies of ocean changes are discussed in Section 9.5.1 .

At a global scale, the observed long-term patterns of zonal temperature and salinity changes tend to be approximately symmetric around the equator( Figure 5.6 )and occur simultaneously in different ocean basins (Figures 5.3 and 5.5 ). The scale of these patterns, which extends beyond the regions of influence normally associated with the NAO, PDO and SAM, suggests that these coherent changes between both hemispheres are associated with a global phenomenon.

5.3.6.2 Consistency with the Large-Scale Ocean Circulation

The observed changes are broadly consistent with scientific understanding of the circulation of the global oceans. The North Atlantic and antarctic regions, where the oceans ventilate the deep waters over short time scales (<50 years), show strong evidence of change over the instrumental record. For example, the North Atlantic shows evidence of a deep warming and freshening. There is evidence of change in the Southern Ocean bottom waters consistent with the sinking of fresher antarctic shelf waters. Deep waters that are far from the North Atlantic and Antarctic, remote from interaction with the atmosphere, and with replenishment rates that are long compared with the instrumental record, typically show no significant changes. Mode waters, key global water masses found in every ocean basin equatorward of major oceanic frontal systems or separated boundary currents, have a relatively rapid formation and ventilation rate (<20 years) and provide a pathway for heat (and salinity) to be transported into the main subtropical gyres of the global oceans as observed.

5.4.2.1 Total Change in Dissolved Inorganic Carbon and Air-Sea Carbon Dioxide Flux

Direct observations of oceanic dissolved inorganic carbon (DIC; i.e., the sum of CO₂ plus carbonate and bicarbonate) reflect changes in both the natural carbon cycle and the uptake of anthropogenic CO₂ from the atmosphere. Links between the main modes of climate variability and the marine carbon cycle have been observed on interannual time scales in several regions of the world (see Section 7.3.2.4 for quantitative estimates). In the equatorial Pacific, the reduced upwelling associated with El Niño events decreases the regional outgas of natural CO₂ to the atmosphere ( Feely et al., 1999 [JoC, SRC] ). In the subtropical North Atlantic, reduced mode water formation and reduced deep winter mixing during the positive NAO phase increase the storage of carbon in the intermediate ocean ( Bates et al., 2002 [JoC, SRC] ). These observations show that variability in the content of natural DIC in the ocean has occurred in association with climate variability.

Longer observations exist for the partial pressure of CO₂ (pCO₂)at the surface only. Over more than two decades, the oceanic pCO₂ increase has generally followed the atmospheric CO₂ within the given uncertainty, although regional differences have been observed ( Feely et al., 1999 [JoC, SRC] ; Takahashi et al., 2006 [JoC, SRC] ). The three stations with the longest time series, all in the northern subtropics, show pCO₂ increases at a rate varying between 1.6 and 1.9 μatm yr^–1 ( Figure 5.9 ), indistinguishable from the atmospheric increase of 1.5 to 1.9 μatm yr^–1.Variability on the order of 20 μatm over periods of five years was observed in the three time series, as well as in other data sets, and has been associated with regional changes in the natural carbon cycle driven by changes in ocean circulation and by climate variability ( Gruber et al., 2002 [JoC, SRC] ; Dore et al., 2003 [JoC] ) or with variations in biological activity ( Lefèvre et al., 2004 [JoC, SRC] ).

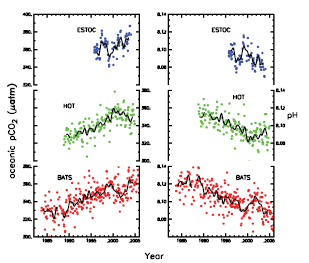

Figure 5.9. Changes in surface oceanic pCO₂ (left; in μatm) and pH (right) from three time series stations: Blue: European Station for Time-series in the Ocean (ESTOC, 29°N, 15°W; Gonzalez-Dávila et al., 2003 [JoC, SRC] ); green: Hawaii Ocean Time-Series (HOT, 23°N, 158°W; Dore et al., 2003 [JoC] ); red: Bermuda Atlantic Time-series Study (BATS, 31/32°N, 64°W; Bates et al., 2002 [JoC, SRC] ; Gruber et al., 2002 [JoC, SRC] ). Values of pCO₂ and pH were calculated from DIC and alkalinity at HOT and BATS; pH was directly measured at ESTOC and pCO₂ was calculated from pH and alkalinity. The mean seasonal cycle was removed from all data. The thick black line is smoothed and does not contain variability less than 0.5 years period.

Direct surface pCO₂ observations have been used to compute a global air-sea CO₂ flux of 1.6 ± 1 GtC yr^–1 for the year 1995 ( (Takahashi et al., 2002; ) Section 7.3.2.3.2 , Figure 7.8 ). It is not yet possible to detect large-scale changes in the global air-sea CO₂ flux from direct observations because of the large influence of climate variability. However, estimates from inverse methods of the air-sea CO₂ flux from the spatio-temporal distribution of atmospheric CO₂ suggest that the global air-sea CO₂ flux increased by 0.1 to 0.6 GtC yr^–1 between the 1980 s and 1990 s, consistent with results from ocean models ( Le Quéré et al., 2003 [JoC, SRC] ).

5.4.2.2 Anthropogenic Carbon Change

The recent uptake of anthropogenic carbon in the ocean is well constrained by observations to a decadal mean of 2.2 ± 0.4 GtC yr^–1 for the 1990 s (see Section 7.3.2 , Table 7.1 ). The uptake of anthropogenic carbon over longer time scales can be estimated from oceanic measurements. Changes in DIC between two time periods reflect the anthropogenic carbon uptake plus the changes in DIC concentration due to changes in water masses and biological activity. To estimate the contribution of anthropogenic carbon alone, several corrections must be applied. From observed DIC changes between surveys in the 1970 s and the 1990 s, an increase in anthropogenic carbon has been inferred down to depths of 1,100 m in the North Pacific ( Peng et al., 2003 [SRC] ; Sabine et al., 2004a [SRC] ), 200 to 1,200 m in the Indian Ocean ( Peng et al., 1998 [JoC, SRC] ; Sabine et al., 1999 [JoC, SRC] ) and 1,900 m in the Southern Ocean ( McNeil et al., 2003 [JoC] ).

An indirect method was used to estimate anthropogenic carbon from observations made at a single time period based on well-known processes that control the distribution of natural DIC in the ocean. The method corrects the observed DIC concentration for organic matter decomposition and dissolution of carbonate minerals, and removes an estimate of the DIC concentration of the water when it was last in contact with the atmosphere ( Gruber et al., 1996 [JoC, SRC] ). With this method, a global DIC increase of 118 ± 19 GtC between pre-industrial times (roughly 1750 ) and 1994 has been estimated, using 9,618 profiles from the 1990 s ( Sabine et al., 2004b [JoC, SRC] ; see Figure 5.10 ). The uncertainty of ±19 GtC in this estimate is based on uncertainties in the anthropogenic DIC estimates and mapping errors, which have characteristics of random error, and on an estimate of potential biases, which are not necessarily centred on the mean value. Potential biases of up to 7% in the technique have been identified, mostly caused by assumptions about the time evolution of CO₂,the age or the identification of water masses ( Matsumoto and Gruber, 2005 [JoC, MoS, SRC] ), and the recent changes in surface warming and stratification ( Keeling, 2005 [JoC, ARC] ). Potential biases from assumptions of constant carbon and nutrient uptake ratios for biological activity have not been assessed. While the magnitude and direction of all potential biases are not yet clear, the given uncertainty of ±16% appears realistic compared to the biases already identified.

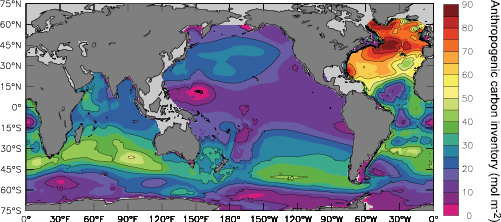

Figure 5.10. Column inventory of anthropogenic carbon (molm^–2)as of 1994 from Sabine et al. 2004b [JoC, SRC] ). Anthropogenic carbon is estimated indirectly by correcting the measured DIC for the contributions of organic matter decomposition and dissolution of carbonate minerals, and taking into account the DIC concentration the water had in the pre-industrial ocean when it was last in contact with the atmosphere. The global inventory of anthropogenic carbon taken up by the ocean between 1750 and 1994 is estimated to be 118 ± 19 GtC.

Because of the limited rate of vertical transport in the ocean, more than half of the anthropogenic carbon can still be found in the upper 400 m, and it is undetectable in most of the deep ocean( Figure 5.11 ). The vertical penetration of anthropogenic carbon is consistent with the DIC changes observed between two cruises ( Peng et al., 1998 [JoC, SRC] , 2003 ). Anthropogenic carbon has penetrated deeper in the North Atlantic and subantarctic Southern Ocean compared to other basins, due to a combination of: i) high surface alkalinity (in the Atlantic) which favours the uptake of CO₂,and ii) more active vertical exchanges caused by intense winter mixing and by the formation of deep waters ( Sabine et al., 2004b [JoC, SRC] ). The deeper penetration of anthropogenic carbon in these regions is consistent with similar features observed in the oceanic distribution of chlorofluorocarbons (CFCs) of atmospheric origin ( Willey et al., 2004 [JoC] ), confirming that it takes decades to many centuries to transport carbon from the surface into the thermocline and the deep ocean. Deeper penetration in the North Atlantic and subantarctic Southern Ocean is also observed in the changes in heat content shown in Figure 5.3 .The large storage of anthropogenic carbon observed in the subtropical gyres is caused by the lateral transport of carbon from the region of mode water formation towards the lower latitudes( Figure 5.10 ).

Figure 5.11. Mean concentration of anthropogenic carbon as of 1994 in μmol kg^–1 from Sabine et al. 2004b [JoC, SRC] ) averaged over (a) the Pacific and Indian Oceans and (b) the Atlantic Ocean. The calculation of anthropogenic carbon is described in the caption of Figure 5.10 and in the text( Section 5.4 ).

The fraction of the net CO₂ emissions taken up by the ocean (the uptake fraction) was possibly lower during 1980 to 2005 (37% ± 7%) compared to 1750 to 1994 (42% ± 7%); however the uncertainty in the estimates is larger than the difference between the estimates( Table 5.1 ). The net CO₂ emissions include all emissions that have an influence on the atmospheric CO₂ concentration (i.e., emissions from fossil fuel burning, cement production, land use change and the terrestrial biosphere response). It is equivalent to the sum of the atmospheric and oceanic CO₂ increase. Because the atmospheric CO₂ is well constrained by observations, the uncertainty in the net CO₂ emissions is nearly equal to the uncertainty in the oceanic CO₂ increase. The decrease in oceanic uptake fraction would be consistent with the understanding that the ocean CO₂ sink is limited by the transport rate of anthropogenic carbon from the surface to the deep ocean, and also with the nonlinearity in carbon chemistry that reduces the CO₂ uptake capacity of water as its CO₂ concentration increases ( Sarmiento et al., 1995 [JoC, MoS, SRC] ).

5.4.2.3 Ocean Acidification by Carbon Dioxide

The uptake of anthropogenic carbon by the ocean changes the chemical equilibrium of the ocean. Dissolved CO₂ forms a weak acid. ^[1] As CO₂ increases, pH decreases, that is, the ocean becomes more acidic. Ocean pH can be computed from measurements of DIC and alkalinity. A decrease in surface pH of 0.1 over the global ocean was calculated from the estimated uptake of anthropogenic carbon between 1750 and 1994 ( Sabine et al., 2004b [JoC, SRC] ; Raven et al., 2005 [NPR] ), with the lowest decrease (0.06) in the tropics and subtropics, and the highest decrease (0.12) at high latitudes, consistent with the lower buffer capacity of the high latitudes compared to the low latitudes. The mean pH of surface waters ranges between 7.9 and 8.3 in the open ocean, so the ocean remains alkaline (pH > 7) even after these decreases. For comparison, pH was higher by 0.1 unit during glaciations, and there is no evidence of pH values more than 0.6 units below the pre-industrial pH during the past 300 million years ( Caldeira and Wickett, 2003 [JoC] ). A decrease in ocean pH of 0.1 units corresponds to a 30% increase in the concentration ofH⁺ in seawater, assuming that alkalinity and temperature remain constant. Changes in surface temperature may have induced an additional decrease in pH of <0.01. The calculated anthropogenic impact on pH is consistent with results from time series stations where a decrease in pH of 0.02 per decade was observed( Figure 5.9 ). Results from time series stations include not only the increase in anthropogenic carbon, but also other changes due to local physical and biological variability. The consequences of changes in pH on marine organisms are poorly known (see Section 7.3.4 and Box 7.3 ).

Shoaling of the aragonite saturation horizon has been observed in all ocean basins based on alkalinity, DIC and oxygen measurements ( Feely and Chen, 1982 [JoC, SRC] ; Feely et al., 2002 [JoC, SRC] ; Sabine et al., 2002 [JoC, SRC] ; Sarma et al., 2002 [JoC, SRC] ). The amplitude and direction of the signal was everywhere consistent with the uptake of anthropogenic carbon, with potentially smaller contributions from changes in circulation, temperature and biology. Feely et al. 2004 [JoC, SRC] ) calculated that the uptake of anthropogenic carbon alone has caused a shoaling of the aragonite saturation horizon between 1750 and 1994 by 30 to 200 m in the eastern Atlantic (50°S–15°N), the North Pacific and the North Indian Ocean, and a shoaling of the calcite saturation horizon by 40 to 100 m in the Pacific (north of 20°N). This calculation is based on the anthropogenic DIC increase estimated by Sabine et al. 2004a [SRC] ), on a global compilation of biogeochemical data and on carbonate chemistry equations. Furthermore, an increase in total alkalinity (primarily controlled by carbonate and bicarbonate) at the depth of the aragonite saturation horizon between 1970 and 1990 has been reported ( Sarma et al., 2002 [JoC, SRC] ). These results are consistent with the calculated increase in CaCO₃ dissolution as a result of the shoaling of the aragonite saturation horizon, but with large uncertainty. Carbonate decreases at high latitudes and particularly in the Southern Ocean may have consequences for marine ecosystems because the current saturation horizon is closer to the surface than in other basins ( Orr et al., 2005 [JoC, ARC] ; see Section 7.3.4 ).

5.4.2.4 Change in Carbonate Species

The uptake of anthropogenic carbon occurs through the injection of CO₂ and causes a shift in the distribution of carbon species (i.e., the balance between CO₂,carbonate and bicarbonate). The availability of carbonate is particularly important because it controls the maximum amount of CO₂ that the ocean is able to absorb. Marine organisms use carbonate to produce shells of calcite and aragonite (both consisting of calcium carbonate; CaCO₃). Currently, the surface ocean is super-saturated with respect to both calcite and aragonite, but undersaturated below a depth called the ‘saturation horizon’. The undersaturation starts at a depth varying between 200 m in parts of the high-latitude and the Indian Ocean and 3,500 m in the Atlantic. Calcium carbonate dissolves either when it sinks below the calcite or aragonite saturation horizons or under the action of biological activity.

5.5.2.1 20th-Century Sea Level Rise from Tide Gauges

Table 11.9 of the TAR listed several estimates for global and regional 20th-century sea level trends based on the Permanent Service for Mean Sea Level (PSMSL) data set ( Woodworth and Player, 2003 [SRC] ). The concerns about geographical bias in the PSMSL data set remain, with most long sea level records stemming from the NH, and most from continental coastlines rather than ocean interiors. Based on a small number (~25) of high-quality tide gauge records from stable land regions, the rate of sea level rise has been estimated as 1.8 mm yr^–1 for the past 70 years ( Douglas, 2001 [NPR] ; Peltier, 2001 [NPR] and Miller and Douglas 2004 [JoC] ) find a range of 1.5 to 2.0 mm yr^–1 for the 20th century from 9 stable tide gauge sites. Holgate and Woodworth 2004 [JoC, SRC] ) estimated a rate of 1.7 ± 0.4 mm yr^–1 sea level change averaged along the global coastline during the period 1948 to 2002, based on data from 177 stations divided into 13 regions. Church et al. 2004 [JoC, MoS, SRC] ) (discussed further below) determined a global rise of 1.8 ± 0.3 mm yr^–1 during 1950 to 2000, and Church and White 2006 [JoC, SRC] ) determined a change of 1.7 ± 0.3 mm yr^–1 for the 20th century. Changes in global sea level as derived from analyses of tide gauges are displayed in Figure 5.13 .Considering the above results, and allowing for the ongoing higher trend in recent years shown by altimetry (see Section 5.5.2.2 ), we assess the rate for 1961 to 2003 as 1.8 ± 0.5 mm yr^–1 and for the 20th century as 1.7 ± 0.5 mm yr^–1.

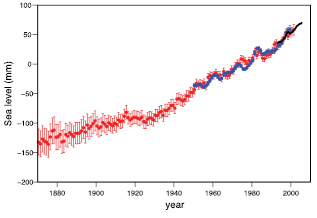

Figure 5.13. Annual averages of the global mean sea level (mm). The red curve shows reconstructed sea level fields since 1870 (updated from Church and White, 2006 [JoC, SRC] ); the blue curve shows coastal tide gauge measurements since 1950 (from Holgate and Woodworth, 2004 [JoC, SRC] ) and the black curve is based on satellite altimetry ( Leuliette et al., 2004 [SRC] ). The red and blue curves are deviations from their averages for 1961 to 1990, and the black curve is the deviation from the average of the red curve for the period 1993 to 2001 . Error bars show 90% confidence intervals.

While the recently published estimates of sea level rise over the last decades remain within the range of the TAR values (i.e., 1–2 mm yr^–1), there is an increasing opinion that the best estimate lies closer to 2 mm yr^–1 than to 1 mm yr^–1.The lower bound reported in the TAR resulted from local and regional studies; local and regional rates may differ from the global mean, as discussed below (see Section 5.5.2.5 ).

Acritical issue concerns how the records are adjusted for vertical movements of the land upon which the tide gauges are located and of the oceans. Trends in tide gauge records are corrected for GIA using models, but not for other land motions. The GIA correction ranges from about 1 mm yr^–1 (or more) near to former ice sheets to a few tenths of a millimetre per year in the far field (e.g., Peltier, 2001 [NPR] ); the error in tide-gauge based global average sea level change resulting from GIA is assessed as 0.15 mm yr^–1.The TAR mentioned the developing geodetic technologies (especially the Global Positioning System; GPS) that hold the promise of measuring rates of vertical land movement at tide gauges, no matter if those movements are due to GIA or to other geological processes. Although there has been some model validation, especially for GIA models, systematic problems with such techniques, including short data spans, have yet to be fully resolved.

5.5.2.2 Sea Level Change during the Last Decade from Satellite Altimetry

Since 1992, global mean sea level can be computed at 10-day intervals by averaging the altimetric measurements from the TOPEX/Poseidon (T/P) and Jason satellites over the area of coverage (66°S to 66°N) ( Nerem and Mitchum, 2001 [NPR, SRC] ). Each 10-day estimate of global mean sea level has an accuracy of approximately 5 mm. Numerous papers on the altimetry results (see Cazenave and Nerem, 2004 [JoC, SRC] , for a review) show a current rate of sea level rise of 3.1 ± 0.7 mm yr^–1 over 1993 to 2003 ( Cazenave and Nerem, 2004 [JoC, SRC] ; Leuliette et al., 2004 [SRC] ; Figure 5.14 ). A significant fraction of the 3 mm yr^–1 rate of change has been shown to arise from changes in the Southern Ocean ( Cabanes et al., 2001 [JoC, SRC] ).

Figure 5.14. Variations in global mean sea level (difference to the mean 1993 to mid- 2001 ) computed from satellite altimetry from January 1993 to October 2005, averaged over 65°S to 65°N. Dots are 10-day estimates (from the TOPEX/Poseidon satellite in red and from the Jason satellite in green). The blue solid curve corresponds to 60-day smoothing. Updated from Cazenave and Nerem 2004 [JoC, SRC] and Leuliette et al. 2004 [SRC] ).

The accuracy needed to compute mean sea level change pushes the altimeter measurement system to its performance limits, and thus care must be taken to ensure that the instrument is precisely calibrated (see Appendix 5.A.4.1). The tide gauge calibration method ( (Mitchum, 2000 ) ) provides diagnoses of problems in the altimeter instrument, the orbits, the measurement corrections and ultimately the final sea level data. Errors in determining the altimeter instrument drift using the tide gauge calibration, currently estimated to be about 0.4 mm yr^–1,are almost entirely driven by errors in knowledge of vertical land motion at the gauges ( (Mitchum, 2000 ) ).

Altimetry-based sea level measurements include variations in the global ocean basin volume due to GIA. Averaged over the oceanic regions sampled by the altimeter satellites, this effect yields a value close to –0.3 mm yr^–1 in sea level ( Peltier, 2001 [NPR] ), with possible uncertainty of 0.15 mm yr^–1.This number is subtracted from altimetry-derived global mean sea level in order to obtain the contribution due to ocean (water) volume change.

Altimetry from T/P allows the mapping of the geographical distribution of sea level change( Figure 5.15 a). Although regional variability in coastal sea level change had been reported from tide gauge analyses (e.g., Douglas, 1992 [JoC] ; Lambeck, 2002 [NPR, SRC] ), the global coverage of satellite altimetry provides unambiguous evidence of non-uniform sea level change in open oceans, with some regions exhibiting rates of sea level change about five times the global mean. For the past decade, sea level rise shows the highest magnitude in the western Pacific and eastern Indian oceans, regions that exhibit large interannual variability associated with ENSO. Except for the Gulf Stream region, most of the Atlantic Ocean shows sea level rise during the past decade. Despite the global mean rise, Figure 5.15 ashows that sea level has been dropping in some regions (eastern Pacific and western Indian Oceans). These spatial patterns likely reflect decadal fluctuations rather than long-term trends. Empirical Orthogonal Functions (EOF) analyses of altimetry-based sea level maps over 1993 to 2003 show a strong influence of the 1997 – 1998 El Niño, with the geographical patterns of the dominant mode being very similar to those of the sea level trend map (e.g., Nerem et al., 1999 [JoC, SRC] ).

Figure 5.15. (a) Geographic distribution of short-term linear trends in mean sea level (mm yr^–1)for 1993 to 2003 based on TOPEX/Poseidon satellite altimetry (updated from Cazenave and Nerem, 2004 [JoC, SRC] ) and (b) geographic distribution of linear trends in thermal expansion (mm yr^–1)for 1993 to 2003 (based on temperature data down to 700 m from Ishii et al., 2006 [MoS, ARC] ).

5.5.2.3 Reconstructions of Sea Level Change during the Last 50 Years Based on Satellite Altimetry and Tide Gauges

Attempts have been made to reconstruct historical sea level fields by combining the near-global coverage from satellite altimeter data with the longer but spatially sparse tide gauge records ( Chambers et al., 2002 [JoC, SRC] ; Church et al., 2004 [JoC, MoS, SRC] ). These sea level reconstructions use the short altimeter record to determine the principal EOF of sea level variability, and the tide gauge data to estimate the evolution of the amplitude of the EOFs over time. The method assumes that the geographical patterns of decadal sea level trends can be represented by a superposition of the patterns of variability that are manifest in interannual variability. The sea level for the period 1870 to 2000 ( Church and White, 2006 [JoC, SRC] ) shown in Figure 5.13 is based on this approach. As a caveat, note that variability on different time scales may have different characteristic patterns (see Section 5.5.4.1 ).

The trends in the EOF amplitudes (and the implied global correlations) allow the reconstruction of a spatially variable rate of sea level rise. Figure 5.16 a(updated from Church et al., 2004 [JoC, MoS, SRC] ) shows the geographical distribution of linear sea level trends for 1955 to 2003 based on this reconstruction technique. Comparison with the altimetry-based trend map for the shorter period ( 1993 to 2003 ) indicates quite different geographical patterns. These differences mainly arise from thermal expansion changes through time (see Section 5.5.3 )

Changes in spatial sea level patterns through time may help reconcile apparently inconsistent estimates of regional variations in tide-gauge based sea level rise. For example, the minimum in rise along the northwest Australian coast is consistent with the results of Lambeck 2002 [NPR, SRC] ) in having smaller rates of sea level rise and indeed sea level fall off north-western Australia over the last few decades. In addition, for the North Atlantic Ocean, the rate of rise reaches a maximum (over 2 mm yr^–1)in a band running east-northeast from the US east coast. The trends are lower in the eastern than in the western Atlantic ( Lambeck et al., 1998 [MoS, SRC] ; Woodworth et al., 1999 [SRC] ; Mitrovica et al., 2001 [JoC, SRC] ).

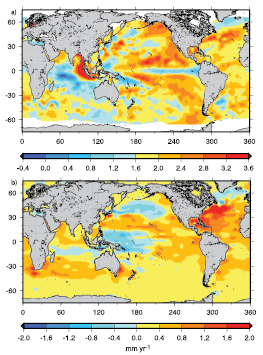

Figure 5.16. (a) Geographic distribution of long-term linear trends in mean sea level (mm yr^–1)for 1955 to 2003 based on the past sea level reconstruction with tide gauges and altimetry data (updated from Church et al., 2004 [JoC, MoS, SRC] ) and (b) geographic distribution of linear trends in thermal expansion (mm yr^–1)for 1955 to 2003 (based on temperature data down to 700 m from Ishii et al., 2006 [MoS, ARC] ). Note that colours in (a) denote 1.6 mm yr^–1 higher values than those in (b).

5.5.2.4 Interannual and Decadal Variability and Long-Term Changes in Sea Level

Sea level records contain a considerable amount of interannual and decadal variability, the existence of which is coherent throughout extended parts of the ocean. For example, the global sea level curve in Figure 5.13 shows an approximately 10 mm rise and fall of global mean sea level accompanying the 1997 – 1998 ENSO event. Over the past few decades, the time series of the first EOF of Church et al. 2004 [JoC, MoS, SRC] ) represents ENSO variability, as shown by a significant (negative) correlation with the Southern Oscillation Index. The signature of the 1997 – 1998 El Niño is also clear in the altimetric maps of sea level anomalies (see Section 5.5.2.2 ). Model results suggest that large volcanic eruptions produce interannual to decadal fluctuations in the global mean sea level (see Section 9.5.2 ).

Holgate and Woodworth 2004 [JoC, SRC] ) concluded that the 1990 s had one of the fastest recorded rates of sea level rise averaged along the global coastline (~4 mm yr^–1), slightly higher than the altimetry-based open ocean sea level rise (3 mm yr^–1). However, their analysis also shows that some previous decades had comparably large rates of coastal sea level rise (e.g., around 1980; Figure 5.17 White et al. 2005 [JoC, SRC] ) confirmed the larger sea level rise during the 1990 s around coastlines compared to the open ocean but found that in some previous periods the coastal rate was smaller than the open ocean rate, and concluded that over the last 50 years the coastal and open ocean rates of change were the same on average. The global reconstruction of Church et al. 2004 [JoC, MoS, SRC] and Church and White 2006 [JoC, SRC] ) also exhibits large decadal variability in the rate of global mean sea level rise, and the 1993 to 2003 rate has been exceeded in some previous decades( Figure 5.17 ). The variability is smaller in the global reconstruction (standard deviation of overlapping 10-year rates is 1.1 mm yr^–1)than in the Holgate and Woodworth 2004 [JoC, SRC] ) coastal time series (standard deviation 1.7 mm yr^–1). The rather low temporal correlation (r = 0.44) between the two time series suggests that the statistical uncertainty in the linear trends calculated from either data set probably underestimates the systematic uncertainty in the results( Section 5.5.6 ).

Figure 5.17. Overlapping 10-year rates of global sea level change from tide gauge data sets ( Holgate and Woodworth, 2004 [JoC, SRC] , in solid black; Church and White, 2006 [JoC, SRC] , in dashed black) and satellite altimetry (updated from Cazenave and Nerem, 2004 [JoC, SRC] , in green), and contributions to global sea level change from thermal expansion ( Ishii et al., 2006 [MoS, ARC] , in solid red; Antonov et al., 2005 [JoC, SRC] , in dashed red) and climate-driven land water storage ( Ngo-Duc et al., 2005 [JoC] , in blue). Each rate is plotted against the middle of its 10-year period.

Interannual or longer variability is a major reason why no long-term acceleration of sea level has been identified using 20th-century data alone ( Woodworth, 1990 [JoC, SRC] ; Douglas, 1992 [JoC] ). Another possibility is that the sparse tide gauge network may have been inadequate to detect it if present ( Gregory et al., 2001 [JoC, SRC] ). The longest records available from Europe and North America contain accelerations of the order of 0.4 mm yr^–1 per century between the 19th and 20th century ( (Ekman, 1988; ) Woodworth et al., 1999 [SRC] ). For the reconstruction shown in Figure 5.13 ,Church and White 2006 [JoC, SRC] ) found an acceleration of 1.3 ± 0.5 mm yr^–1 per century over the period 1870 to 2000 . These data support an inference that the onset of acceleration occurred during the 19th century (see Section 9.5.2 ).

Geological observations indicate that during the last 2,000 years (i.e., before the recent rise recorded by tide gauges), sea level change was small, with an average rate of only 0.0 to 0.2 mm yr^–1 (see Section 6.4.3 ). The use of proxy sea level data from archaeological sources is well established in the Mediterranean. Oscillations in sea level from 2,000 to 100 yr before present did not exceed ±0.25 m, based on the Roman-Byzantine-Crusader well data ( (Sivan et al., 2004 ) ). Many Roman and Greek constructions are relatable to the level of the sea. Based on sea level data derived from Roman fish ponds, which are considered to be a particularly reliable source of such information, together with nearby tide gauge records, Lambeck et al. 2004 [SRC] ) concluded that the onset of the modern sea level rise occurred between 1850 and 1950 Donnelly et al. 2004 [JoC] ( and Gehrels et al. 2004 ) ), employing geological data from Connecticut, Maine and Nova Scotia salt-marshes together with nearby tide gauge records, demonstrated that the sea level rise observed during the 20th century was in excess of that averaged over the previous several centuries.

The joint interpretation of the geological observations, the longest instrumental records and the current rate of sea level rise for the 20th century gives a clear indication that the rate of sea level rise has increased between the mid-19th and the mid-20th centuries.

5.5.2.5 Regional Sea Level Change

Two regions are discussed here to give examples of local variability in sea level: the northeast Atlantic and small Pacific Islands.

Interannual variability in northeast Atlantic sea level records exhibits a clear relationship to the air pressure and wind changes associated with the NAO, with the magnitude and sign of the response depending primarily upon latitude ( Andersson, 2002 [JoC] ; Wakelin et al., 2003 [JoC, SRC] ; Woolf et al., 2003 [SRC] ). The signal of the NAO can also be observed to some extent in ocean temperature records, suggesting a possible, smaller NAO influence on regional mean sea level via steric (density) changes ( Tsimplis et al., 2006 [SRC] ). In the Russian Arctic Ocean, sea level time series for recent decades also have pronounced decadal variability that correlates with the NAO index. In this region, wind stress and atmospheric pressure loading contribute nearly half of the observed sea level rise of 1.85 mm yr^–1 ( Proshutinsky et al., 2004 [JoC, SRC] ).

Small Pacific Islands are the subject of much concern in view of their vulnerability to sea level rise. The Pacific Ocean region is the centre of the strongest interannual variability of the climate system, the coupled ocean-atmosphere ENSO mode. There are only a few Pacific Island sea level records extending back to before 1950 Mitchell et al. 2001 [NPR] ) calculated rates of relative sea level rise for the stations in the Pacific region. Using their results (from their Table 1) and focusing on only the island stations with more than 50 years of data (only 4 locations), the average rate of sea level rise (relative to the Earth’s crust) is 1.6 mm yr^–1.For island stations with record lengths greater than 25 years (22 locations), the average rate of relative sea level rise is 0.7 mm yr^–1.However, these data sets contain a large range of rates of relative sea level change, presumably as a result of poorly quantified vertical land motions.

An example of the large interannual variability in sea level is Kwajalein (8°44’N, 167°44’E) (Marshall Archipelago). As shown in Figure 5.18 ,the local tide gauge data, the sea level reconstructions of Church et al. 2004 [JoC, MoS, SRC] and Church and White 2006 [JoC, SRC] ) and the shorter satellite altimeter record all agree and indicate that interannual variations associated with ENSO events are greater than 0.2 m. The Kwajalein data also suggest increased variability in sea level after the mid- 1970 s, consistent with the trend towards more frequent, persistent and intense ENSO events since the mid- 1970 s ( Folland et al., 2001 [NPR, PoC, ARC] ). For the Kwajalein record, the rate of sea level rise, after correction for GIA land motions and isostatic response to atmospheric pressure changes, is 1.9 ± 0.7 mm yr^–1.However, the uncertainties in rates of sea level change increase rapidly with decreasing record length and can be several mm yr^–1 for decade-long records (depending on the magnitude of the interannual variability). Sea level change on the atolls of Tuvalu (western Pacific) has been the subject of intense interest as a result of their low-lying nature and increasing incidence of flooding. There are two records available at Funafuti, Tuvalu; the first record commences in 1977 and the second (with rigorous datum control) in 1993 . After allowing for subsidence affecting the first record, Church et al. 2006 [Ambiguous] ) estimate sea level rise at Tuvalu to be 2.0 ± 1.7 mm yr^–1,in agreement with the reconstructed rate of sea level rise.

Figure 5.18. Monthly mean sea level curve for 1950 to 2000 at Kwajalein (8°44’N, 167°44’E). The observed sea level (from tide gauge measurements) is in blue, the reconstructed sea level in red and the satellite altimetry record in green. Annual and semi-annual signals have been removed from each time series and the tide gauge data have been smoothed. The figure was drawn using techniques in Church et al. 2004 [JoC, MoS, SRC] and Church and White 2006 [JoC, SRC] ).

5.5.2.6 Changes in Extreme Sea Level

Societal impacts of sea level change primarily occur via the extreme levels rather than as a direct consequence of mean sea level changes. Apart from non-climatic events such as tsunamis, extreme sea levels occur mainly in the form of storm surges generated by tropical or extra tropical cyclones. Secular changes and decadal variability in storminess are discussed in Chapter3 .Studies of variations in extreme sea levels during the 20th century based on tide gauge data are fewer than studies of changes in mean sea level for several reasons. A study on changes in extremes, which are caused by changes in mean sea level as well as changes in surges, is more complex than the study of mean sea level changes. Moreover, the hourly sampling interval normally used in tide gauge records is not always sufficient to accurately capture the true extreme. Among the different parameters often used to describe extremes, annual maximum surge is a good indicator of climatic trends. For study of long records extending back to the 19th century or before, annual maximum surge-at-high-water (defined as the maximum of the difference between observed high water and the predicted tide at high water) is a better-suited parameter because during that period high waters and not the full tidal curve were recorded.

Studies of the longest records of extremes are inevitably restricted to a small number of locations. From observed sea level extremes at Liverpool since 1768, Woodworth and Blackman 2002 [JoC, SRC] ) concluded that the annual maximum surge-at-high-water was larger in the late 18th, late 19th and late 20th centuries than for most of the 20th century, qualitatively consistent with the long-term variability in storminess from meteorological data. From the tide gauge record at Brest from 1860 to 1994, ( Bouligand and Pirazzoli 1999 ) ) found an increasing trend in annual maxima and 99th percentile of surges; however, a decreasing trend was found during the period 1953 to 1994 . From non-tidal residuals (‘surges’) at San Francisco since 1858, Bromirski et al. 2003 [JoC, ARC] ) concluded that extreme winter residuals have exhibited a significant increasing trend since about 1950, a trend that is attributed to an increase in storminess during this period. Zhang et al. 2000 [JoC] ) concluded from records at 10 stations along the east coast of the USA since 1900 that the rise in extreme sea level closely followed the rise in mean sea level. A similar conclusion can be drawn from a recent study of Firing and Merrifield 2004 [JoC] ), who found long-term increases in the number and height of daily extremes at Honolulu (interestingly, the highest-ever value being due an anticyclonic oceanic eddy system in 2003 ), but no evidence for an increase relative to the underlying upward mean sea level trend.

An analysis of 99th percentiles of hourly sea level at 141 stations over the globe for recent decades ( Woodworth and Blackman, 2004 [JoC, SRC] ) showed that there is evidence for an increase in extreme high sea level worldwide since 1975 . In many cases, the secular changes in extremes were found to be similar to those in mean sea level. Likewise, interannual variability in extremes was found to be correlated with regional mean sea level, as well as to indices of regional climate patterns.

5.5.4.1 Steric Sea Level Changes

Like the sea level trends observed by satellite altimetry (see Section 5.5.2.3 ), the global distribution of thermosteric sea level trends is not spatially uniform. This is illustrated by Figure 5.15 band Figure 5.16 b, which show the geographical distribution of thermosteric sea level trends over two different periods, 1993 to 2003 and 1955 to 2003 respectively (updated from Lombard et al., 2005 [JoC] ). Some regions experienced sea level rise while others experienced a fall, often with rates that are several times the global mean. However, the patterns of thermosteric sea level rise over the approximately 50-year period are different from those seen in the 1990 s. This occurs because the spatial patterns, like the global average, are also subject to decadal variability. In other words, variability on different time scales may have different characteristic patterns.

An EOF analysis of gridded thermosteric sea level time series since 1955 (updated from Lombard et al., 2005 [JoC] ) displays a spatial pattern that is similar to the spatial distribution of thermosteric sea level trends over the same time span (compare Figure 5.20 with Figure 5.16 b). In addition, the first principal component is negatively correlated with the Southern Oscillation Index. Thus, it appears that ENSO-related ocean variability accounts for the largest fraction of variance in spatial patterns of thermosteric sea level. Similarly, decadal thermosteric sea level in the North Pacific and North Atlantic appears strongly influenced by the PDO and NAO respectively.

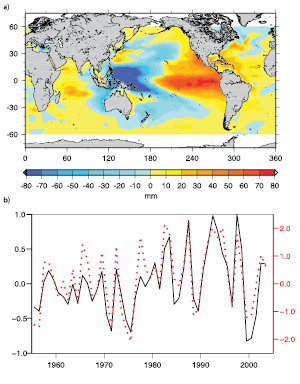

Figure 5.20. (a) First mode of the EOF decomposition of the gridded thermosteric sea level time series of yearly temperature data down to 700 m from Ishii et al. 2006 [MoS, ARC] ). (b) The normalised principal component (black solid curve) is highly correlated with the negative Southern Oscillation Index (dotted red curve).

For the recent years ( 1993 – 2003 ), the geographic distribution of observed sea level trends( Figure 5.15 a) shows correlation with the spatial patterns of thermosteric sea level change( Figure 5.15 b). This suggests that at least part of the non-uniform pattern of sea level rise observed in the altimeter data over the past decade can be attributed to changes in the ocean’s thermal structure, which is itself driven by surface heating effects and ocean circulation. Note that the steric changes due to salinity changes have not been included in these figures due to insufficient salinity data in parts of the World Ocean.

Ocean salinity changes, while unimportant for sea level at the global scale, can have an effect on regional sea level (e.g., Antonov et al., 2002 [JoC, SRC] ; Ishii et al., 2006 [MoS, ARC] ; Section 5.5.3 ). For example, in the subpolar gyre of the North Atlantic, especially in the Labrador Sea, the halosteric contribution nearly counteracts the thermosteric contribution. This observational result is supported by results from data assimilation into models (e.g., Stammer et al., 2003 [JoC, SRC] ). Since density changes can result not only from surface buoyancy fluxes but also from the wind, a simple attribution of density changes to buoyancy forcing is not possible.

While much of the non-uniform pattern of sea level change can be attributed to thermosteric volume changes, the difference between observed and thermosteric spatial trends show a high residual signal in a number of regions, especially in the southern oceans. Part of these residuals is likely due to the lack of ocean temperature coverage in remote oceans as well as in deep layers (below 700 m), and to regional salinity change.

5.5.4.2 Ocean Circulation Changes

The highly non-uniform geographical distribution of steric sea level trends is closely connected, through geostrophic balance, with changes in ocean surface circulation. Density and circulation changes result from changes in atmospheric forcing that is primarily by surface wind stress and buoyancy flux (i.e., heat and freshwater fluxes). The wind alone can therefore cause local (but not global) changes in steric sea level. Ocean general circulation models based on the assimilation of ocean data satisfactorily reproduce the spatial structure of sea level trends for the past decade, and show in particular that the tropical Pacific pattern results from decadal fluctuations in the depth of the tropical thermocline and change in equatorial trade winds ( Carton et al., 2005 [JoC] ; Köhl et al., 2006 [SRC] ). The similarity of the patterns of steric and actual sea level change indicates that density changes are the dominant influence. Discrepancies may indicate a significant contribution from changes in the wind-driven barotropic circulation, especially at high latitudes.

Surface atmospheric pressure also causes regional sea level variations. Over time scales longer than a few days, the ocean adjusts nearly isostatically to changes in atmospheric pressure (inverted barometer effect), that is, for each 1 hPa sea level pressure increase the ocean is depressed by approximately 10 mm, shifting the underlying mass sideways to other regions. For the temporal average, regional changes in sea level caused by atmospheric pressure loading reach about 0.2 m (e.g., between the subtropical Atlantic and the subpolar Atlantic). Such effects are generally corrected for in tide gauge and altimetry-based sea level analyses. The inverted barometer effect has a negligible effect on global mean sea level, because water is nearly incompressible, but is significant when averaged over the area of T/P and Jason-1 altimetry, which does not cover the whole World Ocean ( (Ponte, 2006 ) ). For that reason, the altimetry-based mean sea level curve is corrected for the inverted barometer effect.

5.5.4.3 Surface Atmospheric Pressure Changes

5.5.4.4 Solid Earth and Geoid Changes

Geodynamical processes related to the solid Earth’s elastic and viscoelastic response to spatially variable ice melt loading (due to the last deglaciation and present-day land ice melt) also cause non-uniform sea level change (e.g., Mitrovica et al., 2001 [JoC, SRC] ; Peltier, 2001 [NPR] , 2004; Plag, 2006 [MoS] ). The solid Earth and oceans continue to respond to the ice and complementary water loads associated with the late Pleistocene and early Holocene glacial cycles through GIA. This process not only drives large crustal uplift near the location of former ice complexes, but also produces a worldwide signature in sea level that results from gravitational, deformational and rotational effects: as the viscous mantle material flows to restore isostasy during and after the last deglaciation, uplift occurs under the former centres of the ice sheets while the surrounding peripheral bulges experience a subsidence. The return of the melt water to the oceans produces an ongoing geoid change resulting in subsidence of the ocean basins and an upward warping of the continents, while the flow of water into the subsiding peripheral bulges contributes a broad scale sea level fall in the far field of the ice complexes. The combined gravitational and deformational effects also perturb the rotation vector of the planet, and this perturbation feeds back into variations in the position of the crust and the geoid (an equipotential surface of the Earth’s gravity field that coincides with the mean surface of the oceans). Corrections for GIA effects are made to both tide gauge and altimeter estimates of global sea level change (see Sections 5.5.2.1 and 5.5.2.2 ).

Self-gravitation and deformation of the Earth’s surface in response to the ongoing change in loading by glaciers and ice sheets is another cause of regional sea level variations. Model predictions show quite different patterns of non-uniform sea level change depending on the source of the ice melt ( Mitrovica et al., 2001 [JoC, SRC] ; Plag, 2006 [MoS] ), and associated regional sea level variations reach up to a few 0.1 mm yr^–1.

5.5.5.1 Ocean Mass Change Estimated from Salinity Change

Global salinity changes can be caused by changes in the global sea ice volume (which do not influence sea level) and by ocean mass changes (which do). Thus in principle, global salinity changes can be used to estimate the global average sea level change due to fresh water input ( Antonov et al., 2002 [JoC, SRC] ; Munk, 2003 [JoC] ; Wadhams and Munk, 2004 [JoC] ). However, the accuracy of these estimates depends on the accuracy of the estimates for both sea ice volume ( Hilmer and Lemke, 2000 [JoC, ARC] ; Wadhams and Munk, 2004 [JoC] ; see also Section 4.4 )and global salinity change( Section 5.2.3 ). We assess that the error in estimates of ocean mass changes derived from salinity changes and sea ice melt is too large to provide useful constraints on the sea level change budget( Section 5.5.6 ).

5.5.5.2 Land Ice

During the 20th century, glaciers and ice caps have experienced considerable mass losses, with strong retreats in response to global warming after 1970 . For 1961 to 2003, their contribution to sea level is assessed as 0.50 ± 0.18 mm yr^–1 and for 1993 to 2003 as 0.77 ± 0.22 mm yr^–1 (see Section 4.5.2 ).

As discussed in Section 4.6.2.2 and Table 4.6 ,the Greenland Ice Sheet has also been losing mass in recent years, contributing 0.05 ± 0.12 mm yr^–1 to sea level rise during 1961 to 2003 and 0.21 ± 0.07 mm yr^–1 during 1993 to 2003 . Assessments of contributions to sea level rise from the Antarctic Ice Sheet are less certain, especially before the advent of satellite measurements, and are 0.14 ± 0.41 mm yr^–1 for 1961 to 2003 and 0.21 ± 0.35 mm yr^–1 for 1993 to 2003 . Geodetic data on Earth rotation and polar wander allow a late-20th century sea level contribution of up to about 1 mm yr^–1 from land ice ( (Mitrovica et al., 2006 ) ). However, recent estimates of ice sheet mass change exclude the large contribution inferred for Greenland by Mitrovica et al. 2001 [JoC, SRC] ) from the geographical pattern of sea level change, confirming the lower rates reported above.

5.5.5.3 Climate-Driven Change in Land Water Storage

Continental water storage includes water (both liquid and solid) stored in subsurface saturated (groundwater) and unsaturated (soil water) zones, in the snowpack, and in surface water bodies (lakes, artificial reservoirs, rivers, floodplains and wetlands). Changes in concentrated stores, most notably very large lakes, are relatively well known from direct observation. In contrast, global estimates of changes in distributed surface stores (soil water, groundwater, snowpack and small areas of surface water) rely on computations with detailed hydrological models coupled to global ocean-atmosphere circulation models or forced by observations. Such models estimate the variation in land water storage by solving the water balance equation. The Land Dynamics (LaD) model developed by Milly and Shmakin 2002 [JoC, MoS] ) provides global 1° by 1° monthly gridded time series of root zone soil water, groundwater and snowpack for the last two decades. With these data, the contributions of time-varying land water storage to sea level rise in response to climate change have been estimated, resulting in a small positive sea level trend of about 0.12 mm yr^–1 for the last two decades, with larger interannual and decadal fluctuations ( Milly et al., 2003 [JoC, SRC] ). From a land surface model forced by a global climatic data set based on standard reanalysis products and on observations, land water changes during the past five decades were found to have low-frequency (decadal) variability of about 2 mm in amplitude but no significant trend ( Ngo-Duc et al., 2005 [JoC] ). These decadal variations are related to groundwater and are caused by precipitation variations. They are strongly negatively correlated with the de-trended thermosteric sea level( Figure 5.17 ). This suggests that the land water contribution to sea level and thermal expansion partly compensate each other on decadal time scales. However, this conclusion depends on the accuracy of the precipitation in reanalysis products.

In summary, our assessment of the land hydrology contribution to sea level change has not led to a reduction in the uncertainty compared to the TAR, which estimated the rather wide ranges of –1.1 to +0.4 mm yr^–1 for 1910 to 1990 and –1.9 to +1.0 mm yr^–1 for 1990 . However, indirect evidence from considering other contributions to the sea level budget (see Section 5.5.6 )suggests that the land contribution either is small (<0.5 mm yr^–1)or is compensated for by unaccounted or underestimated contributions.

5.5.5.4 Anthropogenic Change in Land Water Storage

The amount of anthropogenic change in land water storage systems cannot be estimated with much confidence, as already discussed by Church et al. 2001 [NPR, SRC] ). A number of factors can contribute to sea level rise. First, natural groundwater systems typically are in a condition of dynamic equilibrium where, over long time periods, recharge and discharge are in balance. When the rate of groundwater pumping greatly exceeds the rate of recharge, as is often the case in arid or even semi-arid regions, water is removed permanently from storage. The water that is lost from groundwater storage eventually reaches the ocean through the atmosphere or surface flow, resulting in sea level rise. Second, wetlands contain standing water, soil moisture and water in plants equivalent to water roughly 1 m deep. Hence, wetland destruction contributes to sea level rise. Over time scales shorter than a few years, diversion of surface waters for irrigation in the internally draining basins of arid regions results in increased evaporation. The water lost from the basin hydrologic system eventually reaches the ocean. Third, forests store water in living tissue both above and below ground. When a forest is removed, transpiration is eliminated so that runoff is favoured in the hydrologic budget.

On the other hand, impoundment of water behind dams removes water from the ocean and lowers sea level. Dams have led to a sea level drop over the past few decades of –0.5 to –0.7 mm yr^–1 ( Chao, 1994 [JoC, SRC] ; Sahagian et al., 1994 [JoC, SRC] ). Infiltration from dams and irrigation may raise the water table, storing more water. Gornitz 2001 [NPR] ) estimated –0.33 to –0.27 mm yr^–1 sea level change equivalent held by dams (not counting additional potential storage due to subsurface infiltration).

It is very difficult to provide accurate estimates of the net anthropogenic contribution, given the lack of worldwide information on each factor, although the effect caused by dams is possibly better known than other effects. According to Sahagian 2000 [JoC, SRC] ), the sum of the above effects could be of the order of 0.05 mm yr^–1 sea level rise over the past 50 years, with an uncertainty several times as large.

5.A.4.1 Satellite Altimetry: Measurement Principle and Associated Errors

The concept of satellite altimetry measurement is rather straightforward. The onboard radar altimeter transmits a short pulse of microwave radiation with known power towards the nadir. Part of the incident radiation reflects back to the altimeter. Measurement of the round-trip travel time provides the height of the satellite above the instantaneous sea surface. The quantity of interest in oceanography is the height of the instantaneous sea surface above a fixed reference surface, which is computed as the difference between the altitude of the satellite above the reference ellipsoid and the altimeter range. The satellite position is computed through precise orbit determination, combining accurate modelling of the satellite motion and tracking measurements between the satellite and observing stations on Earth or other observing satellites. A number of corrections must be applied to obtain the correct sea surface height. These include instrumental corrections, ionospheric correction, dry and wet tropospheric corrections, electromagnetic bias correction, ocean and solid Earth tidal corrections, ocean loading correction, pole tide correction and an inverted barometer correction that has to be applied since the altimeter does not cover the global ocean completely. The total measurement accuracy for the TOPEX/Poseidon altimetry-based sea surface height is about 80 mm (95% error) for a single measurement based on one-second along-track averages ( Chelton et al., 2001 [NPR] ).

The above error estimates concern instantaneous sea surface height measurements. For estimating the mean sea level variations, the procedure consists of simply averaging over the ocean the point-to-point measurements collected by the satellite during a complete orbital cycle (10 days for TOPEX/Poseidon and Jason-1), accounting for the spatial distribution of the data using an equal area weighting. In effect, during this time interval, the satellite realises an almost complete coverage of the oceanic domain. The 95% error associated with a 10-day mean sea level estimate is approximately 8 mm.

When computing global mean sea level variations through time, proper account of instrumental bias and drifts (including the terrestrial reference frame) is of considerable importance. These effects (e.g., the radiometer drift onboard TOPEX/Poseidon used to correct for the wet tropospheric delay) are of the same order of magnitude as the sea level signal. Studies by Chambers et al. 1998 [JoC, SRC] and Mitchum 1994 [JoC] ; 2000 ) have demonstrated that comparing the altimeter sea level measurements to tide gauge sea level measurements produces the most robust way of correcting for instrumental bias and drifts. This approach uses a network of high-quality tide gauges, well distributed over the ocean domain. Current results indicate that the residual error in the mean sea level variation using the tide gauge calibration is about 0.8 mm yr^–1 (a value resulting mainly from the uncertainties in vertical land motion at the tide gauges). The current altimeter-inferred sea level measurements do not include modelling of the geocenter or mitigating the effect resulting from the potential drift of the terrestrial reference frame.

5.A.4.2 Sea Level from Tide Gauge Observations

Tide gauges are based on a number of different technologies (float, pressure, acoustic, radar), each of which has its advantages in particular applications. The Global Sea Level Observing System (GLOSS) specifies that a gauge must be capable of measuring sea level to centimetre accuracy (or better) in all weather conditions (i.e., in all wave conditions). The most important consideration is the need to maintain the gauge datum relative to the level of the Tide Gauge Bench Mark (TGBM), which provides the land reference level for the sea level measurements. The specifications for GLOSS require that local levelling must be repeated at least annually between the reference mark of the gauge, TGBM and a set of approximately five ancillary marks in the area, in order to maintain the geodetic integrity of the measurements. In practice, this objective is easier to meet if the area around the gauge is hard rock, rather than reclaimed land, for example. The question of whether the TGBM is moving vertically within a global reference frame (for whatever reason) is being addressed by advanced geodetic methods (GPS, Determination d’Orbite et Radiopositionnement Intégrés par Satellite (DORIS), Absolute Gravity). With typical rates of sea and land level change of order of 1 mm yr^–1,it is necessary to maintain the accuracy of the overall gauge system at the centimetre level over many decades. This demanding requirement has been met in many countries for many years (see IOC, 2002 [NPR] for more information). The tide gauge observation system for three periods is shown in Figure 5.A.2, together with the evolution over time of the number of stations in both hemispheres. The distribution of tide gauge stations was particularly sparse in space at the beginning of the 20th century, but rapidly improved in the 1950 s through to the current network of GLOSS standard instruments. This distribution of instruments through time means that confidence in the estimates of sea level rise has been improving and this certainty is reflected in the shrinking confidence intervals( Figure 5.13 ).

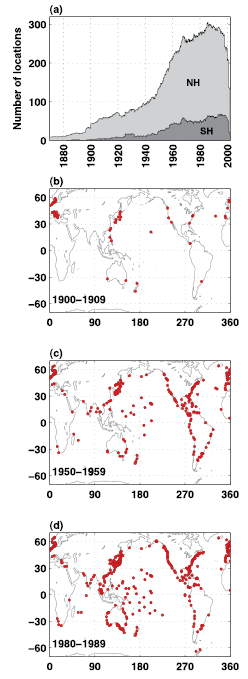

Figure 5.A.2. (a) Number of tide gauge stations in the Northern Hemisphere (NH) and Southern Hemisphere (SH) used to derive the global sea level curve (red and blue curves in Figure 5.13) as a function of time. Lower panels show the spatial distribution of tide gauge stations (denoted by red dots) for the periods (b) 1900 to 1909, (c) 1950 to 1959 and (d) 1980 to 1989 .
